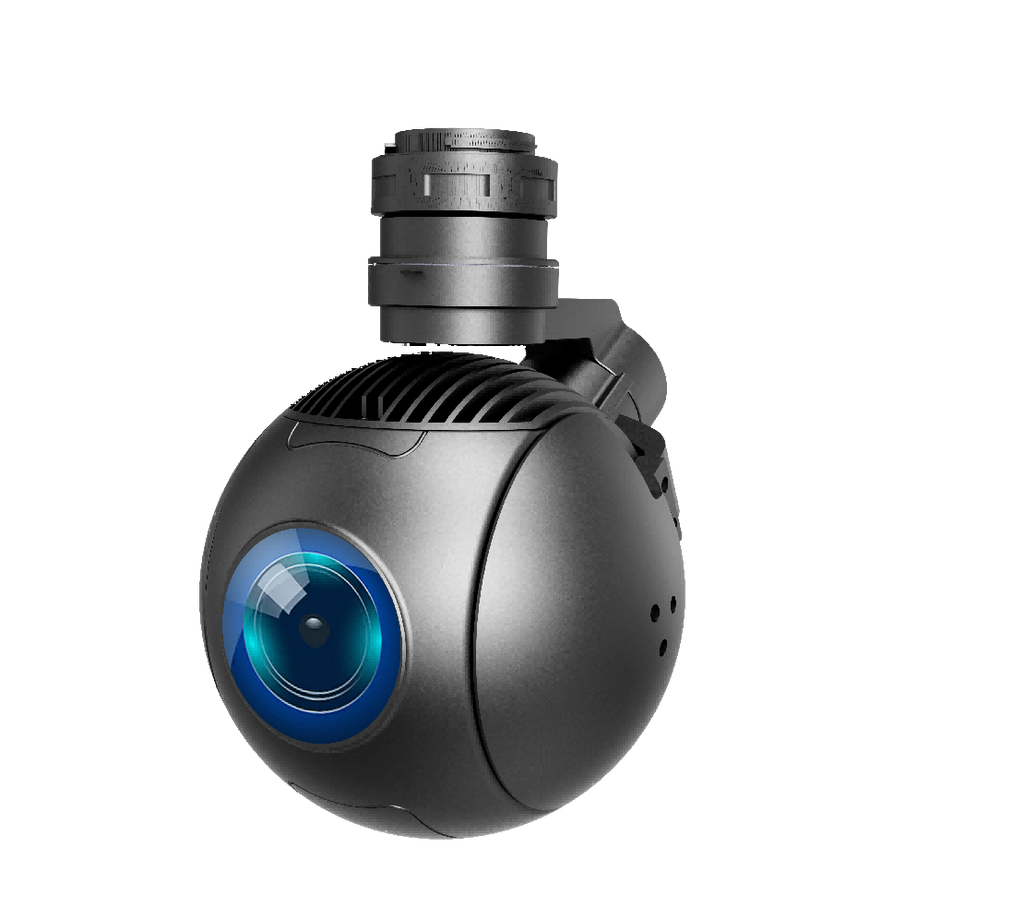

The SGU-HS1-B30R is a lightweight 30x optical zoom gimbal pod for professional UAV platforms. Powered by a SoC with a neural network engine and built-in AI algorithms, it performs target detection and target tracking, while the lightweight 3-axis gimbal with an adaptive vibration-damping module and auto-focus delivers stable, sharp imagery during high-altitude operations.
Key Features
-
30x optical zoom – 5.2–148.4 mm actual focal length (35.22–1005.1 mm equivalent), F1.3–F4.8
-
4K Ultra HD – 8MP sensor, 3840×2160 @ 30fps video and 3840×2160 stills, H.264 / H.265 encoding
-
AI target detection & tracking – neural network engine with built-in intelligent algorithms
-
3-axis stabilized gimbal – ≤0.01° stabilization accuracy with adaptive vibration damping
-
Electronic defog – low / medium / high adjustable levels for hazy conditions
-
OSD overlay – display latitude, longitude, altitude and other data on the video feed
-
Quick-release mount – fast installation and removal, with fixed-hole mounting also supported
-
Flexible control interfaces – Ethernet video output, S.BUS, serial and Ethernet control
Technical Specifications
| General |
|---|
| Model |
SGU-HS1-B30R |
| Video Output Interface |
Ethernet |
| Control Interfaces |
1× S.BUS, 1× Serial, 1× Ethernet |
| Input Voltage |
12V–24V |
| Power Consumption |
≤15W (average) |
| Ingress Protection |
IP4X |
| Operating Temperature |
-20°C to 55°C |

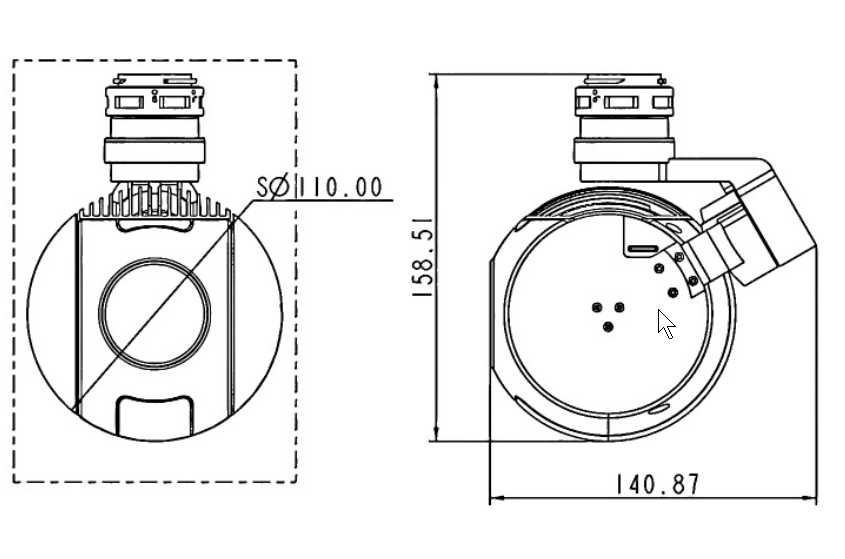

| Dimensions (excl. damping) |
140.9 × 158.4 × φ110 mm |
| Mount Type |
Quick-release & fixed holes |
| Zoom Camera |
|---|
| Image Sensor |
8 Megapixel |
| Max. Photo Size |
3840 × 2160 (16:9) |
| Video Resolution |
3840×2160 @ 30fps, 1920×1080 @ 30fps |
| Video Encoding |
H.264, H.265 |
| Focus Modes |
MF, AFS |
| Focal Length |
5.2 mm – 148.4 mm |
| 35mm Equivalent |
35.22 mm – 1005.1 mm |
| Aperture |
F1.3 – F4.8 |
| Optical Zoom |
30x |
| Field of View (Wide) |
DFOV 63.1° / HFOV 56.3° / VFOV 33.5° |
| Field of View (Tele) |
DFOV 2.5° / HFOV 2.1° / VFOV 1.2° |
| Storage |
microSD up to 128GB (FAT32 / exFAT) |
| Gimbal |
|---|
| Stabilization |
3-axis (pitch, roll, yaw) |
| Rotation Range |
Pitch: -90° to +30° / Roll: ±45° / Yaw: 360° |
| Stabilization Accuracy |
≤0.01° |
| Working Modes |
Follow, Lock |
Camera Functions
- Single shot and interval (continuous) shooting
- Photo: 3840×2160 / 1920×1080; Video: 3840×2160@30fps / 1920×1080@30fps
- Up to 30x optical zoom, AF/AFS focus
- Electronic defog (low / medium / high)
Applications
Power line and infrastructure inspection, public safety and security surveillance, search and rescue, emergency response, border and perimeter patrol, forestry and environmental monitoring, and aerial mapping and survey.
What's in the Box
- 1 × SGU-HS1-B30R Zoom Gimbal Pod
- 1 × Packaging case
