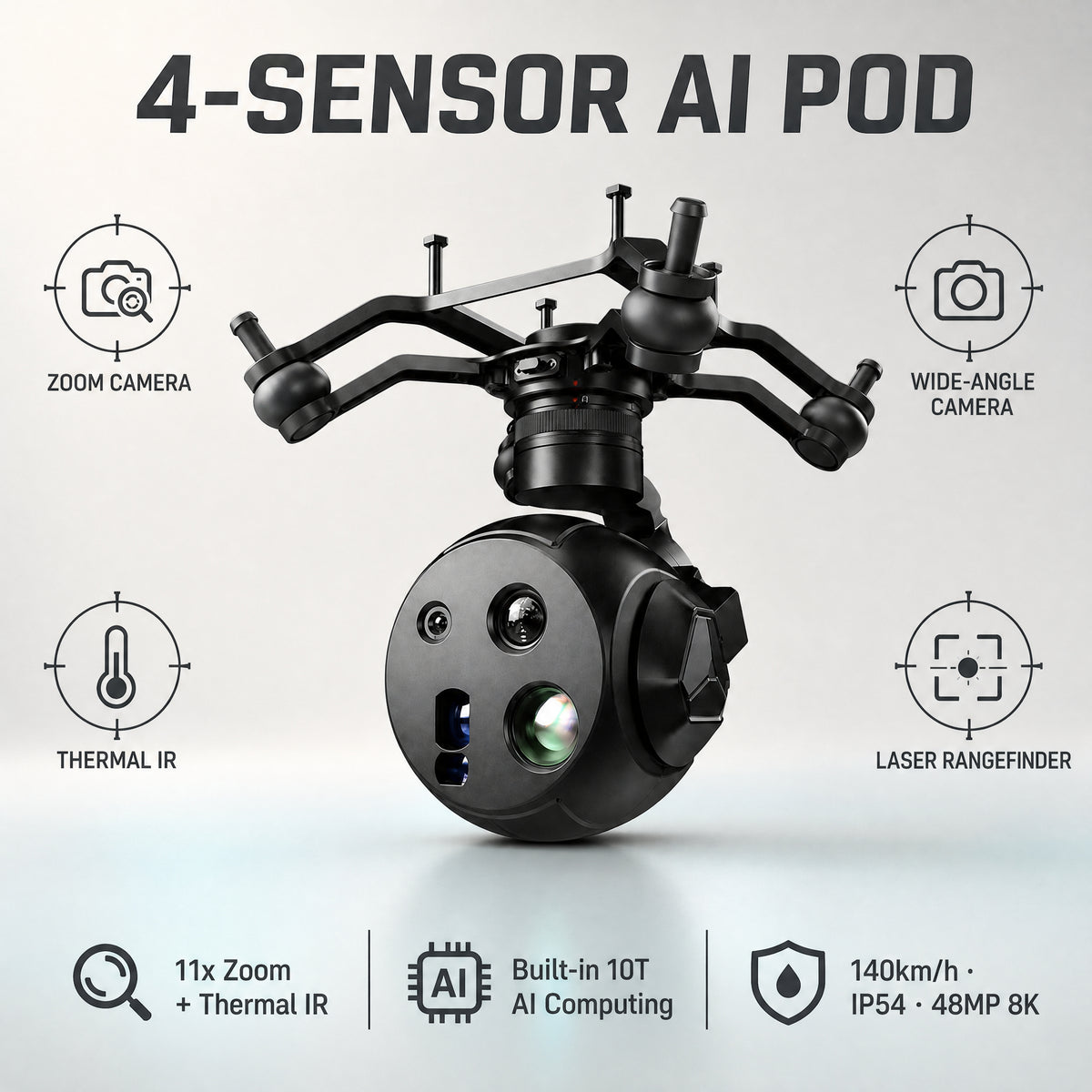

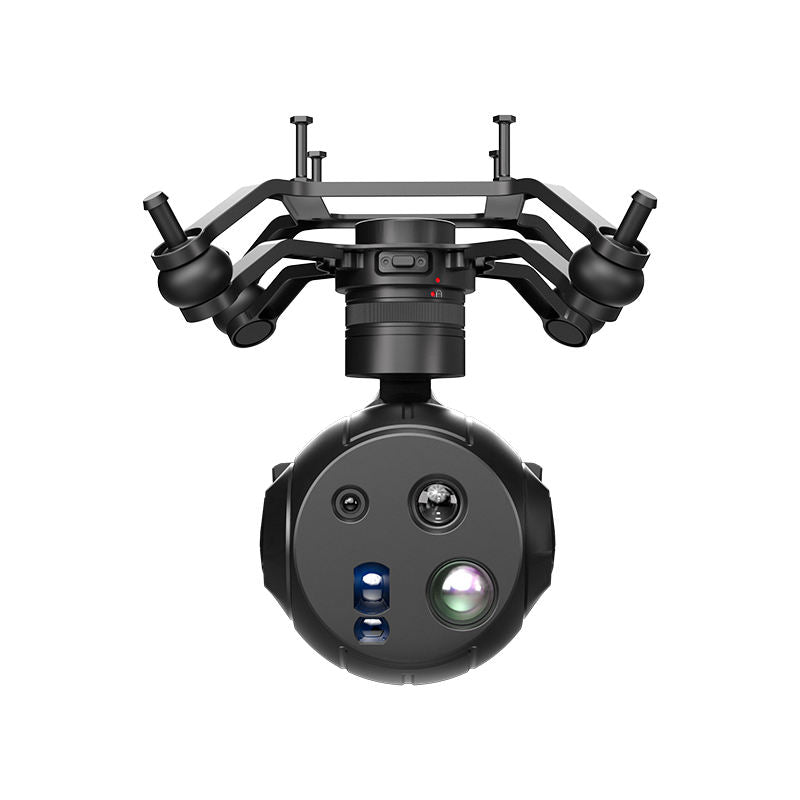

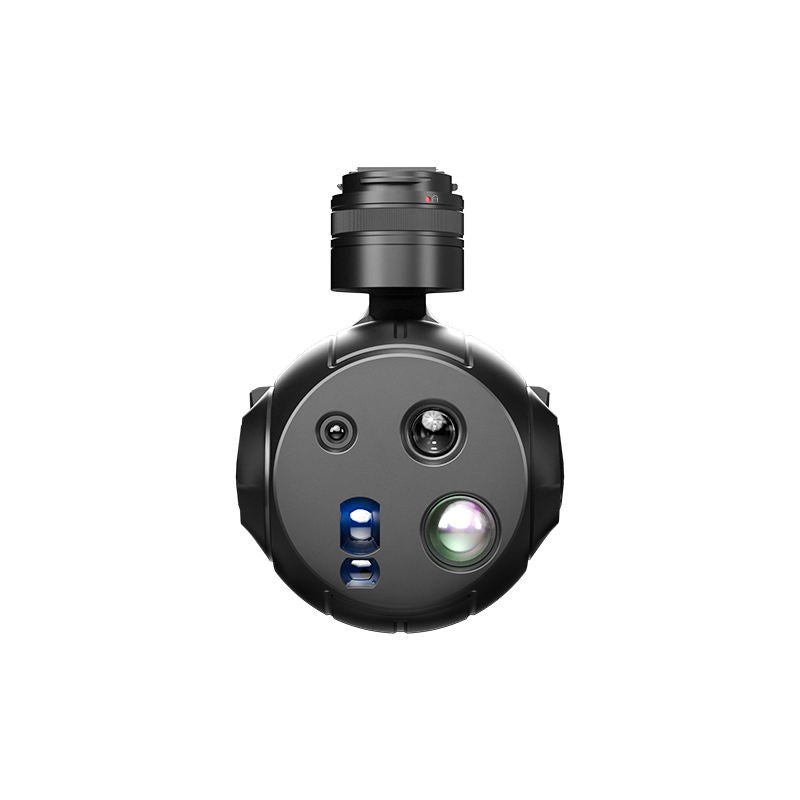

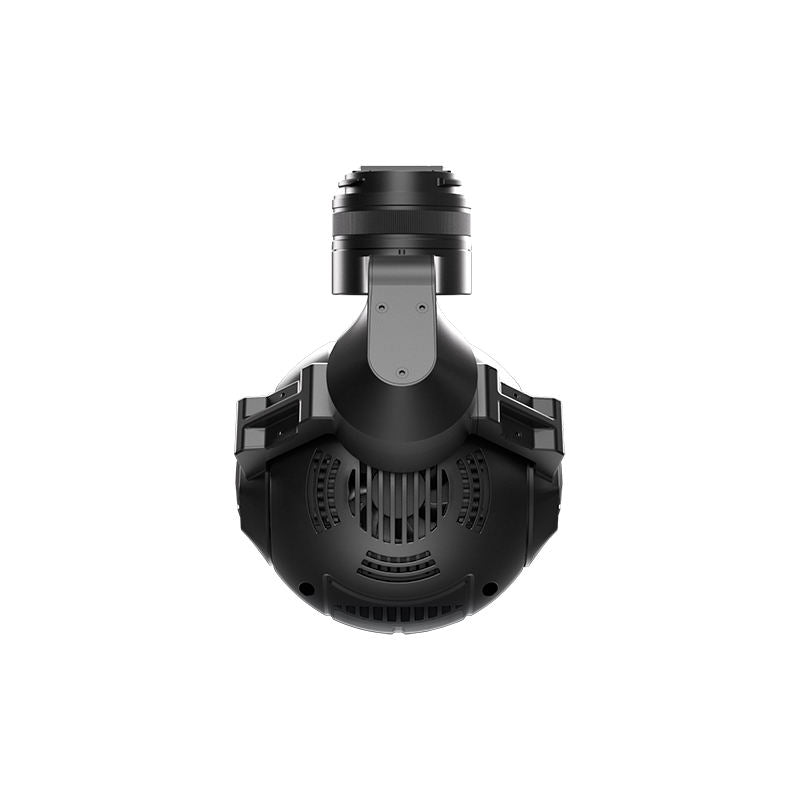

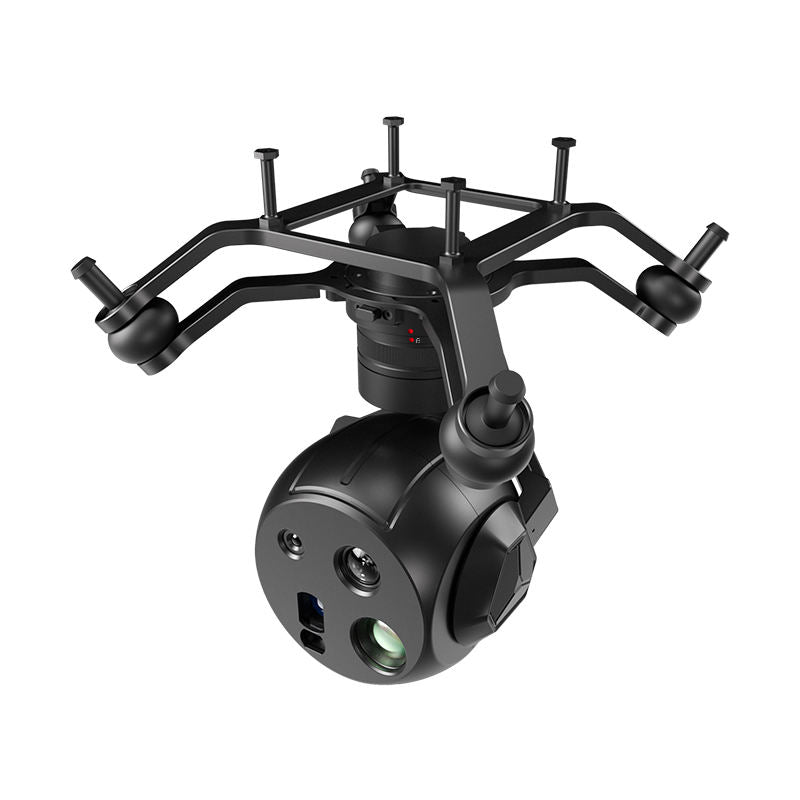

Name: UniPod MT11 Four-Sensor AI Remote-Controlled Gimbal with 11x Zoom
Brand: Dronerove
Price: 4499.00 USD
Availability: InStock

UniPod MT11 Four-Sensor AI Remote-Controlled Gimbal with 11x Zoom

$4,499.00 USD

640 Thermal Imaging, 1200m Rangefinder, 10T, 405g, IP54, Suitable for Drone Vertical Takeoff and Landing, Inspection, and Surveying

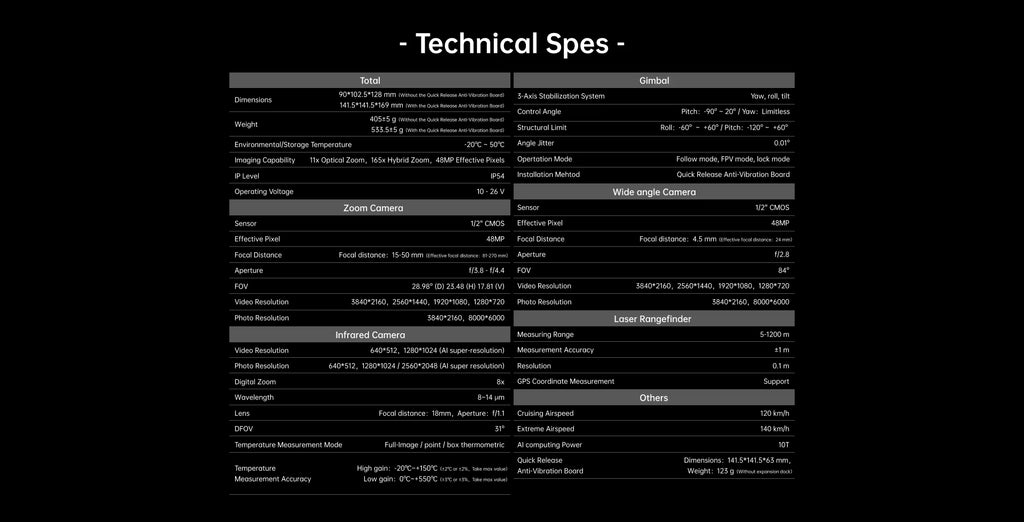

Total

Item	Specification
Dimensions	90×102.5×128 mm (without the Quick Release Anti-Vibration Board); 141.5×141.5×169 mm (with the Quick Release Anti-Vibration Board)
Weight	405±5 g (without the Quick Release Anti-Vibration Board); 533.5±5 g (with the Quick Release Anti-Vibration Board)
Environmental/Storage Temperature	-20℃ ~ 50℃
Imaging Capability	11x Optical Zoom, 165x Hybrid Zoom, 48MP Effective Pixels
IP Level	IP54
Operating Voltage	10 - 26 V

Zoom Camera

Item	Specification
Sensor	1/2" CMOS
Effective Pixel	48MP
Focal Distance	15-50 mm (effective focal distance: 81-270 mm)
Aperture	f/3.8 - f/4.4
FOV	28.98° (D) / 23.48° (H) / 17.81° (V)
Video Resolution	3840×2160, 2560×1440, 1920×1080, 1280×720
Photo Resolution	3840×2160, 8000×6000

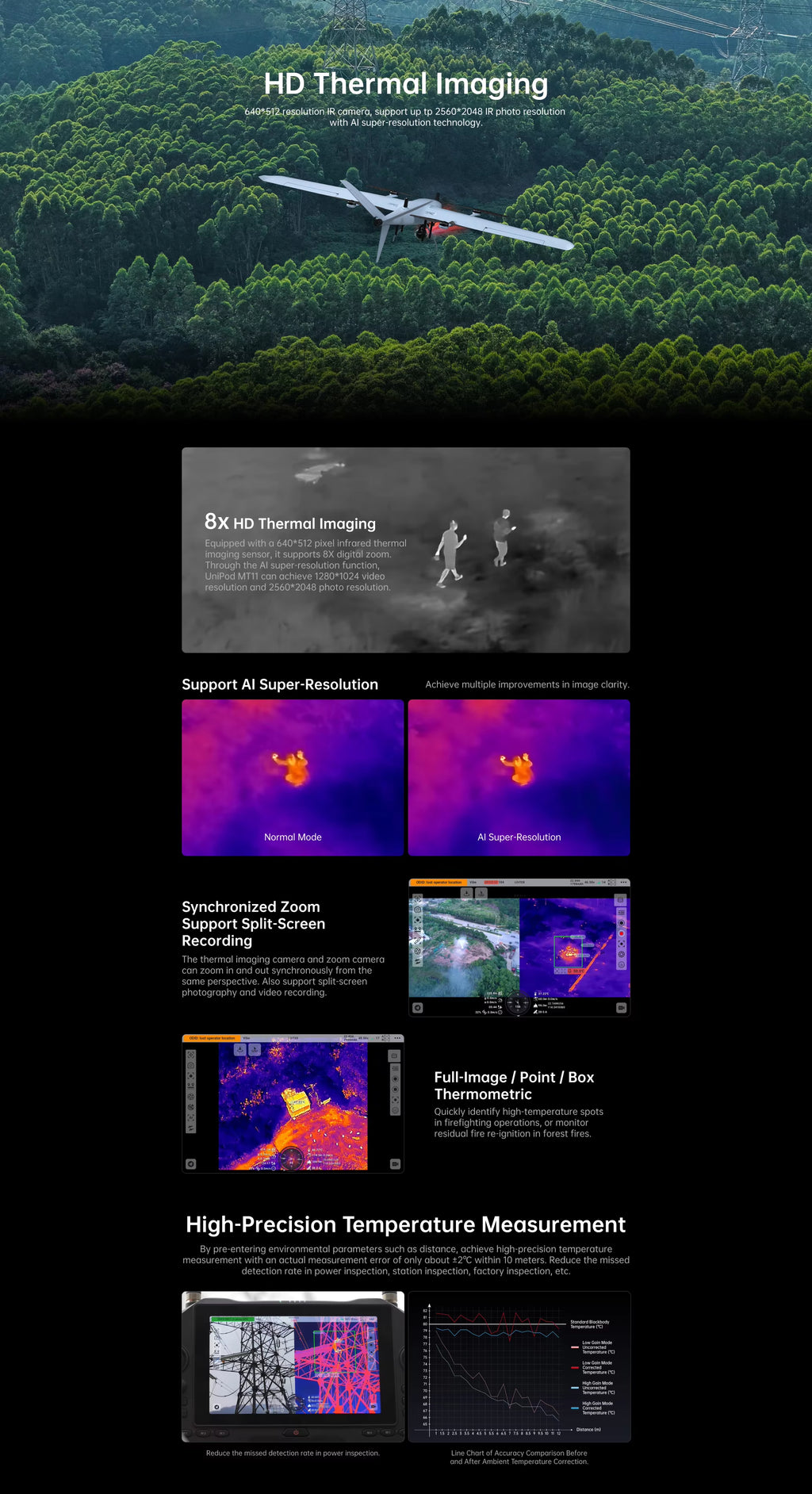

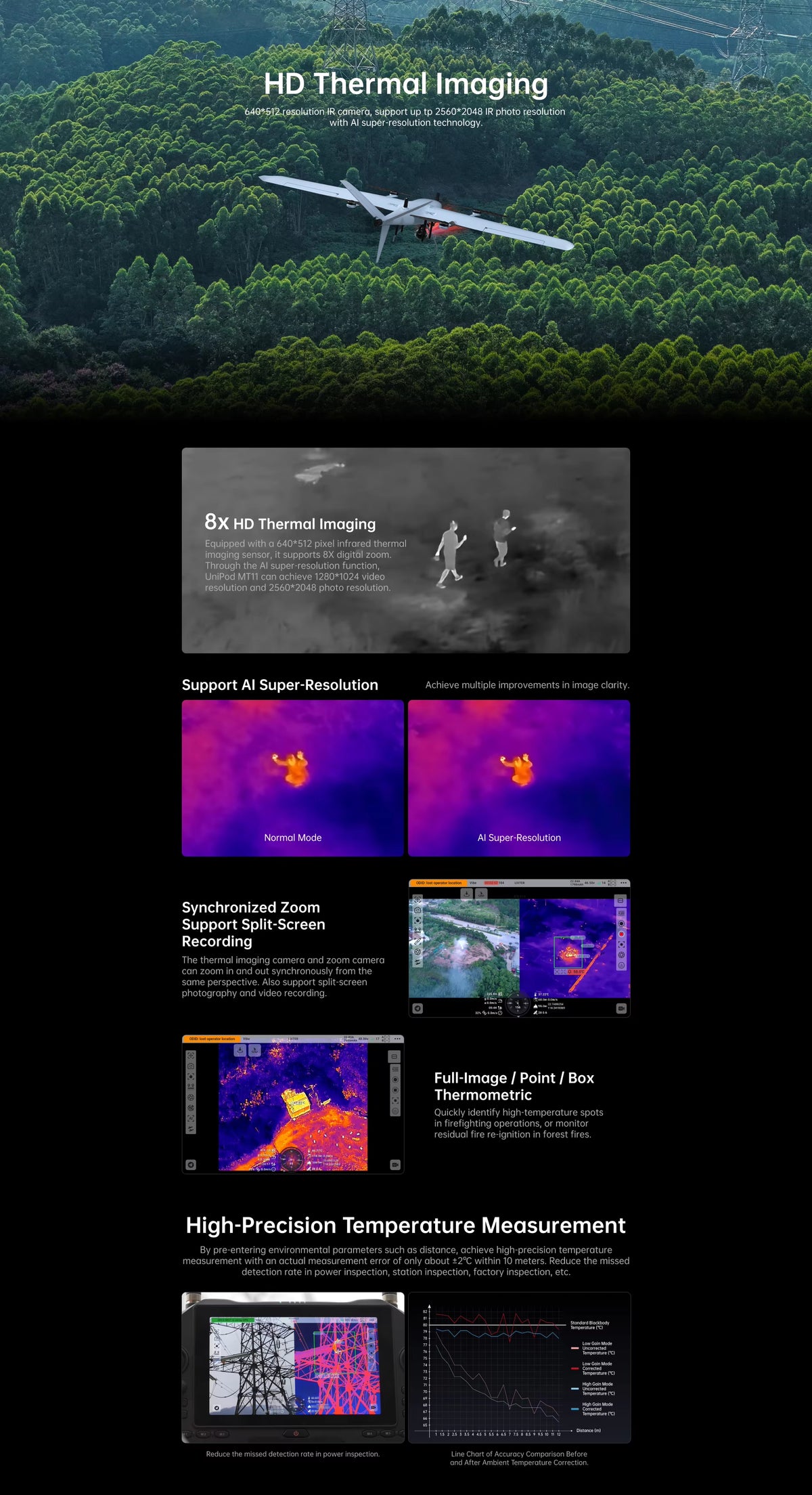

Infrared Camera

Item	Specification
Video Resolution	640×512, 1280×1024 (AI super-resolution)
Photo Resolution	640×512, 1280×1024 / 2560×2048 (AI super resolution)
Digital Zoom	8x
Wavelength	8~14 μm
Lens	Focal distance: 18 mm, Aperture: f/1.1
DFOV	31°
Temperature Measurement Mode	Full-image / point / box thermometric
Temperature Measurement Accuracy	High gain: -20℃~+150℃ (±2℃ or ±2%, take max value); Low gain: 0℃~+550℃ (±3℃ or ±3%, take max value)

Gimbal

Item	Specification
3-Axis Stabilization System	Yaw, roll, tilt
Control Angle	Pitch: -90° ~ 20° / Yaw: Limitless
Structural Limit	Roll: -60° ~ +60° / Pitch: -120° ~ +60°
Angle Jitter	0.01°
Operation Mode	Follow mode, FPV mode, lock mode
Installation Method	Quick Release Anti-Vibration Board

Wide Angle Camera

Item	Specification
Sensor	1/2" CMOS
Effective Pixel	48MP
Focal Distance	4.5 mm (effective focal distance: 24 mm)
Aperture	f/2.8
FOV	84°
Video Resolution	3840×2160, 2560×1440, 1920×1080, 1280×720
Photo Resolution	3840×2160, 8000×6000

Laser Rangefinder

Item	Specification
Measuring Range	5-1200 m
Measurement Accuracy	±1 m
Resolution	0.1 m
GPS Coordinate Measurement	Support

Others

Item	Specification
Cruising Airspeed	120 km/h
Extreme Airspeed	140 km/h
AI Computing Power	10T

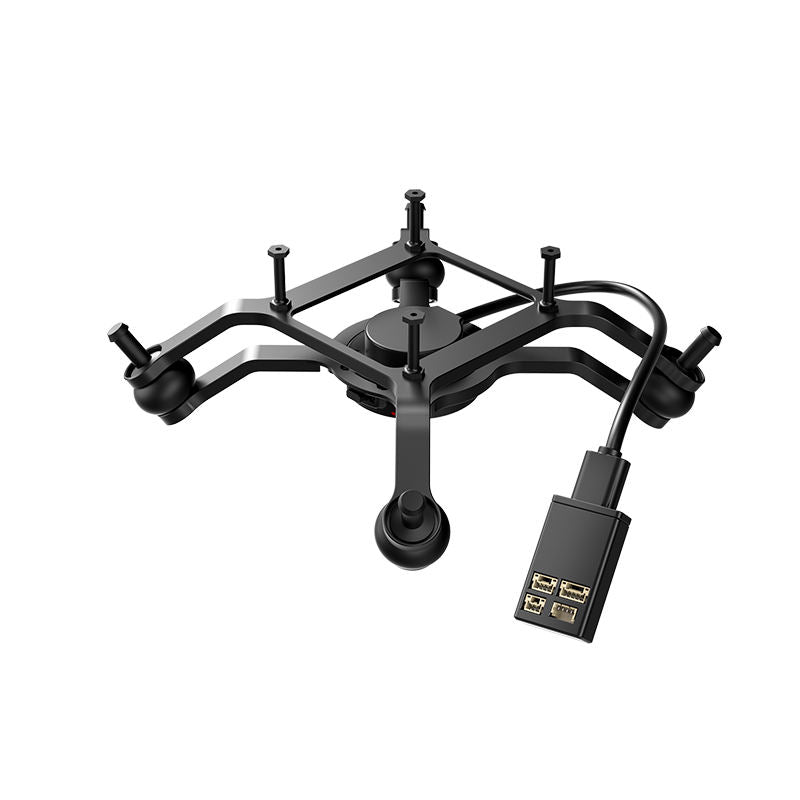

Quick Release Anti-Vibration Board	Dimensions: 141.5×141.5×63 mm; Weight: 123 g (without expansion dock)

Preguntas frecuentes

Nos especializamos en soluciones de drones para el sector de la electrónica de consumo. Atendemos a clientes B2B internacionales, ofreciendo productos que incluyen módulos multisensor para drones.

Nos asociamos con fábricas a largo plazo que cumplen con las normas de gestión de calidad ISO e implementan un riguroso control de calidad. Los productos están disponibles con certificaciones CE y FCC (si corresponde).

Sí. Ofrecemos servicios de diseño y admitimos la creación de marca OEM y la personalización ODM según los requisitos del cliente.

Nuestro método de pago disponible es la transferencia bancaria (T/T).
