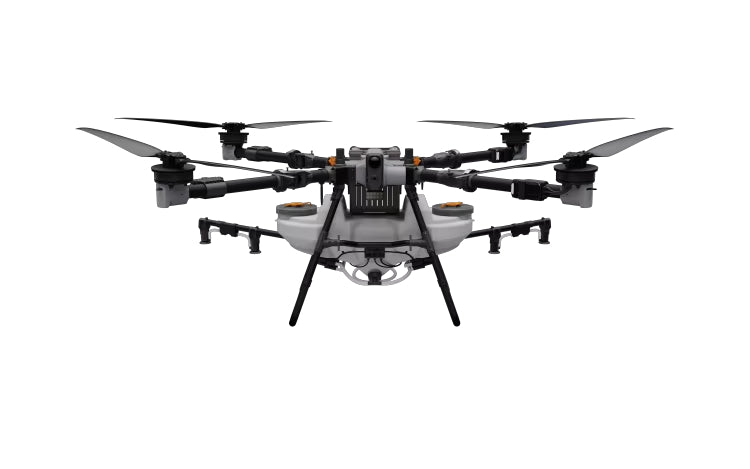

Name: TopXGun 80L Agricultural Spraying UAV
Brand: Dronerove
Price: 10999.00 USD
Availability: InStock

TopXGun 80L Agricultural Spraying UAV

PRODUCT TAG

3KM Range

5-14min Flight

$10,999.00 USD

1 Nozzles Diaphragm Pump Gearbox Pest Control Fertilizer Sprayer 3KM Range 5-14min Flight

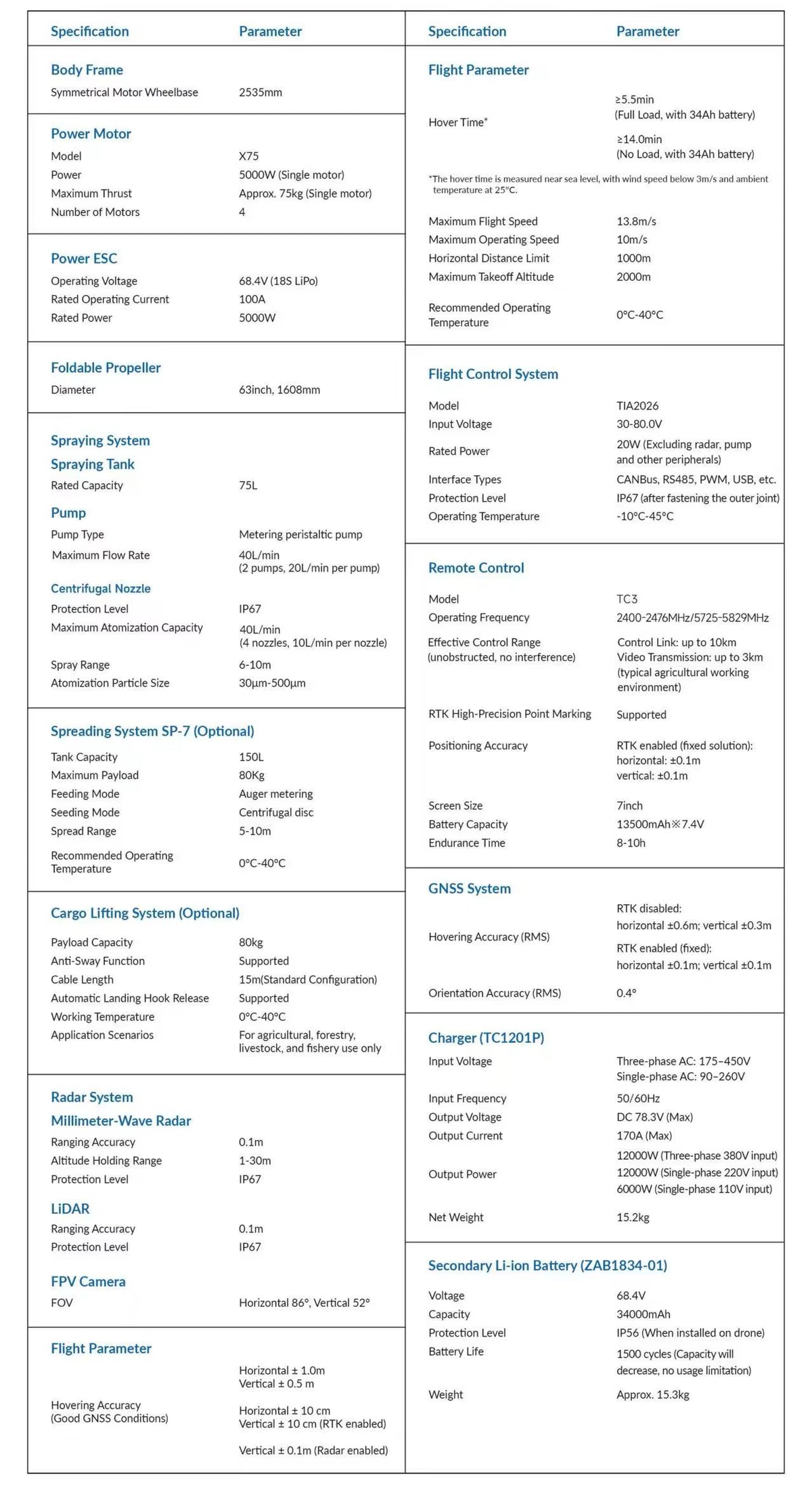

Basic Information

Item	Specification
Model	A80
Brand	TopXGun
Product Type	Heavy-lift agricultural unmanned aerial system (UAV sprayer)
Usage	Farm
Core Components	Pump
Airframe	Modular separable airframe (tool-free switching between spraying, spreading and cargo lifting)
Diameter	2535 (unit not stated, see notes)
Weight	64 kg
Warranty	1 year
Machinery Test Report	Provided
Video Outgoing-Inspection	Provided
Key Selling Points	Large payload capacity, multi-functional
Selling Units	Single item

Flight Performance

Item	Specification
Flight Time	5-14 min
Flight Range	3 km
Max Takeoff Weight	74-149 kg
Max Pesticide Load	80 kg
Max Payload (lifting kit)	80 kg
Max Wind Resistance	5.5-7.9 m/s
Propellers	63-inch high-performance propellers

Spraying System

Item	Specification

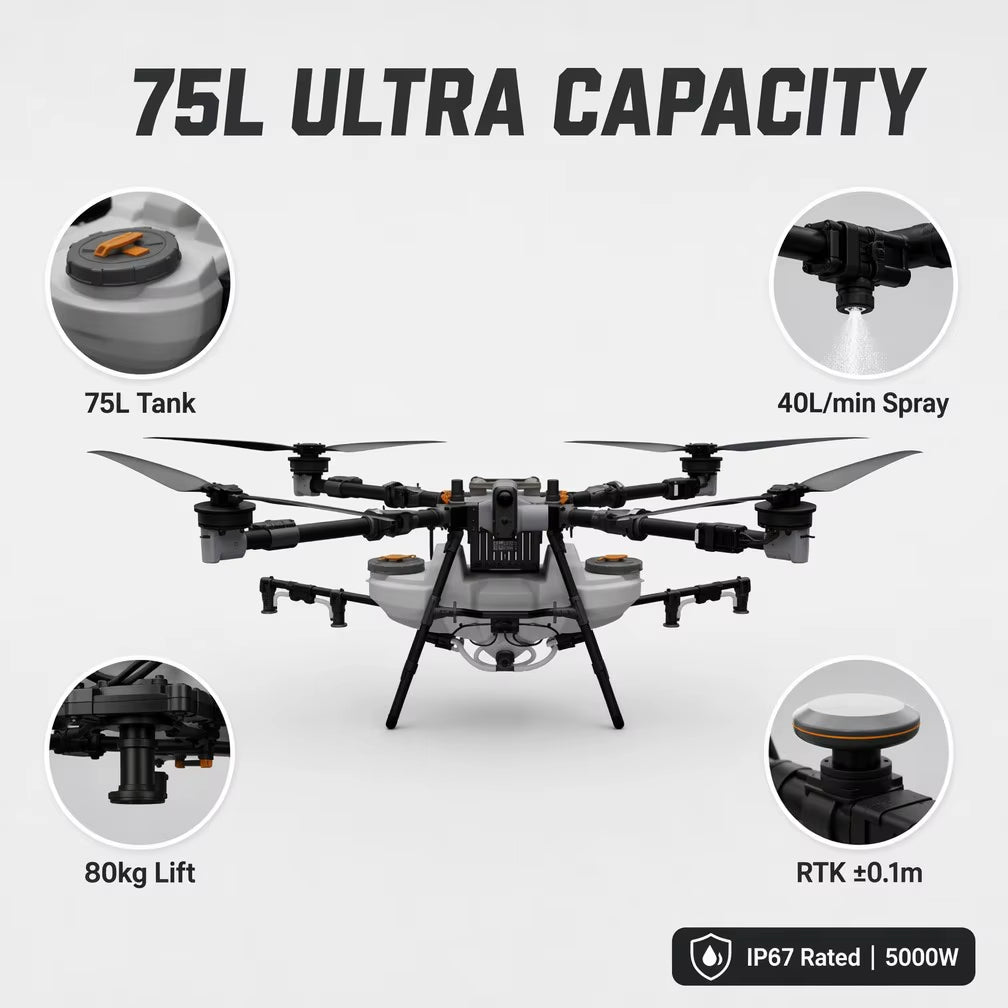

Spray Tank	75 L

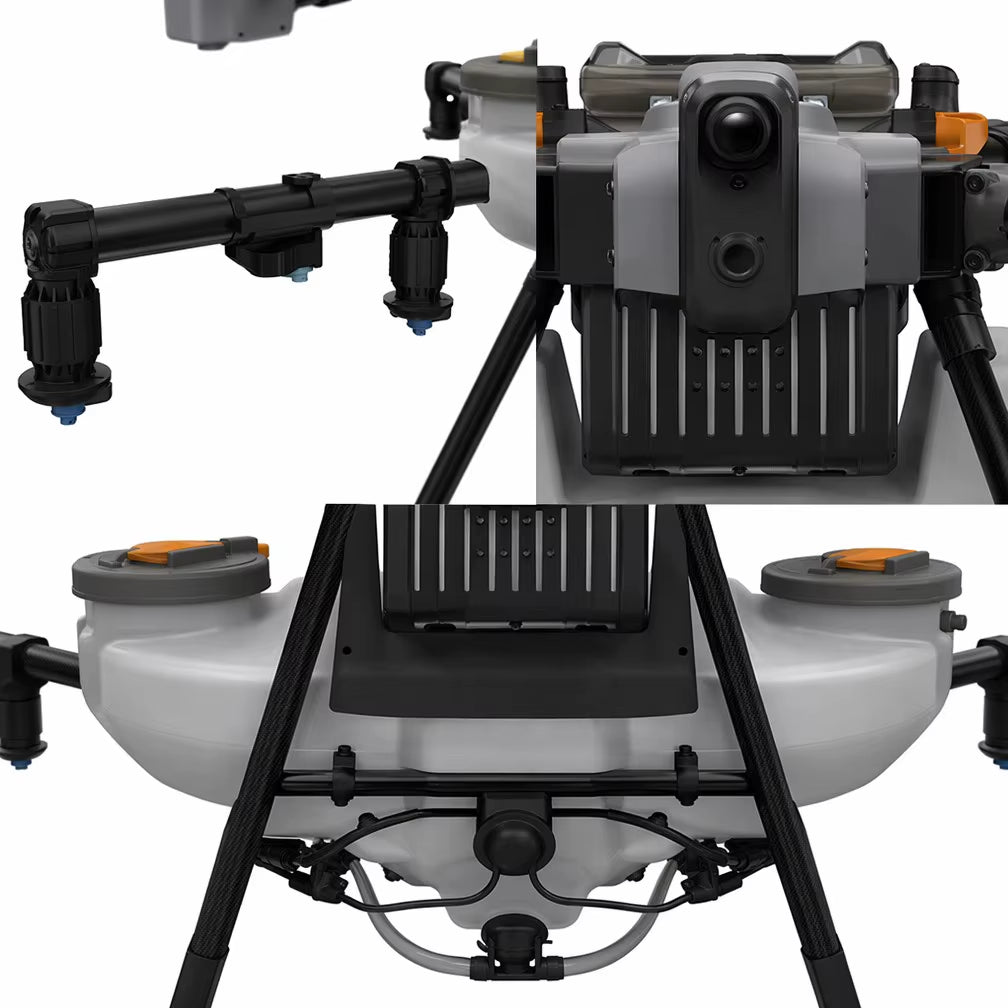

Nozzles	4 rear-mounted centrifugal nozzles
Max Flow Rate	40 L/min
Droplet Size	30-500 μm (adjustable)
Spray Swath	10 m
Pumps	Dual-channel high-flow metering pumps
Mixing	Dynamic circulation mixing system (prevents chemical sedimentation)
Spraying Deviation	Within 5%

Spreading System

Item	Specification
Hopper Volume	150 L
Feeder	Auger feeder
Distribution	Centrifugal disc
Max Discharge Rate	400 L/min (tested with medium-granule urea)
Spread Width	10 m
Application Rate	Supports ultra-low application rates

Lifting System (Optional)

Item	Specification
Anti-Sway	Smart anti-sway system
Hook	Touch-down auto-release hook
Load Weighing	Real-time load weighing
Max Payload	80 kg

Sensing and Safety

Item	Specification
LiDAR	360° hemispherical, 120 m diameter coverage, 850,000 points/s
Radar	Millimeter-wave phased-array radar (terrain following, all-weather obstacle detection in fog, dust and low light)
FPV Camera	Low-light full-color FPV camera for night operations

Battery and Charging

Item	Specification
Battery	34000 mAh, 18S high-voltage smart battery with grille heat dissipation
Charging Options	12 kW single-phase/three-phase AC charger; 12 kW DC charger; 11.5 kW DC fuel-powered generator
Remote Controller	Brand-matched remote controller

Applications and Target Users

Category	Details

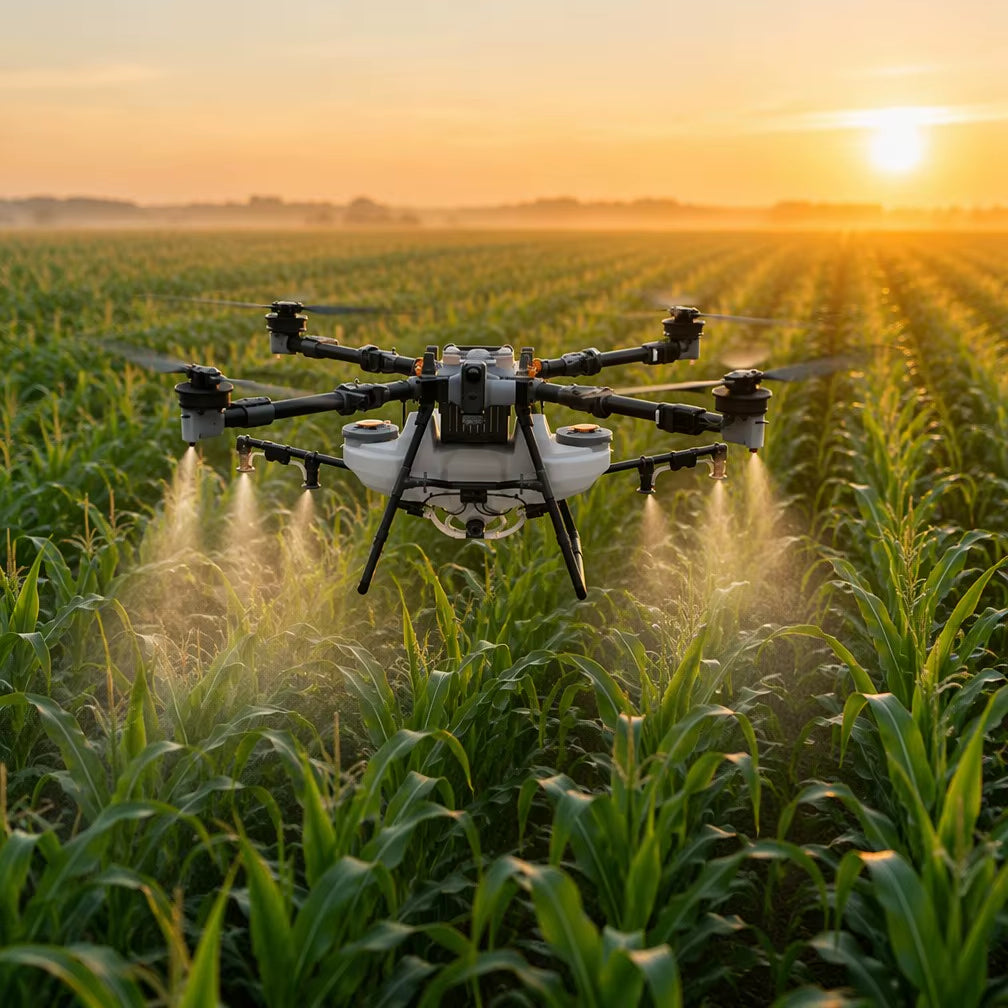

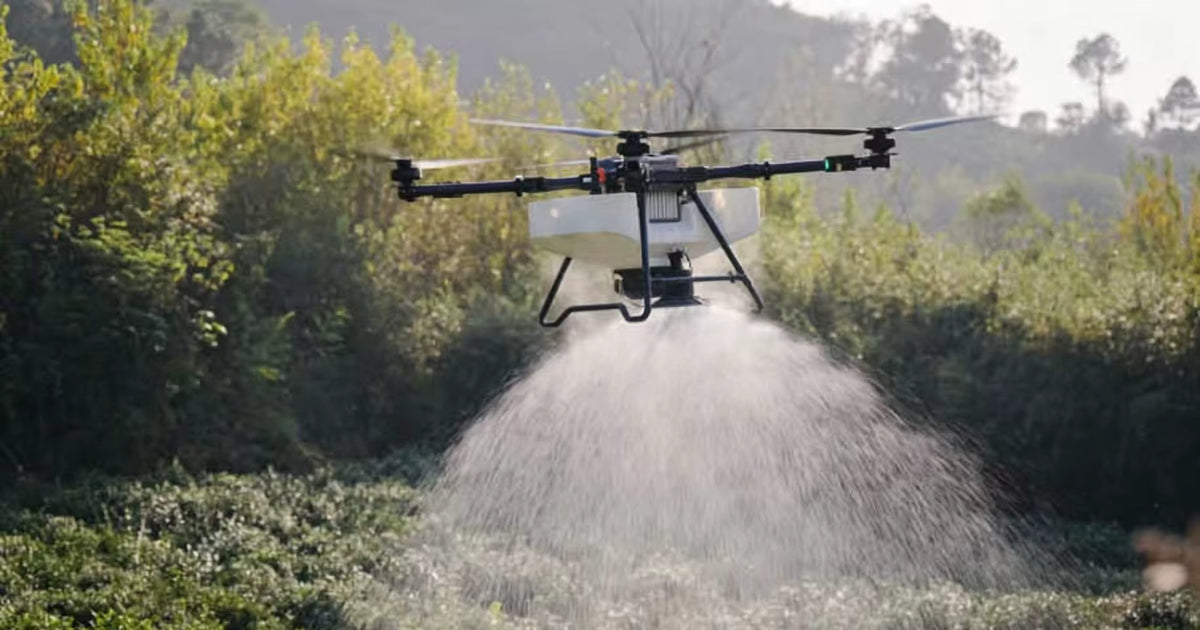

Applications	Liquid spraying, granular broadcasting, light lifting; farm logistics, forestry material transfer, fishery feeding
Target Users	Commercial growers, crop service providers, orchard managers, ag-operators
Work Environments	Row-crop, orchard, mixed terrain

Frequently Asked Questions

We specialize in drone solutions for the consumer electronics sector. We serve international B2B clients, offering products including multi-sensor modules for drones.

We partner with long-term factories that adhere to ISO quality management standards and implement rigorous quality control. Products are available with CE and FCC certifications (if applicable).

Yes. We offer design services and support OEM branding and ODM customization based on client requirements.

Our available payment method is T/T.
