28.7KG thrust, 15mm shaft, 1854W motor, suitable for 22-25S heavy drone
1. Waterproof performance: The P80III brushless motor adopts a waterproof design, making it highly reliable in harsh outdoor environments, such as agricultural drone operations. This feature helps ensure stable performance in all weather conditions.
2. Strong power, easy to handle heavy loads: The motor power is up to 2700W/3600W, using 36N42P winding configuration to provide strong thrust for heavy-duty agricultural drones, effectively improving the load capacity and flight stability.
3. Strong and durable metal structure: The motor is made of magnesium-aluminum alloy, which has stronger strength, wear resistance and longer service life, making it very suitable for high-intensity industrial applications.
4. Compatible with agricultural drones: Designed for agricultural drone systems, this accessory is ideal for drones used for spraying, transporting and other field operations.

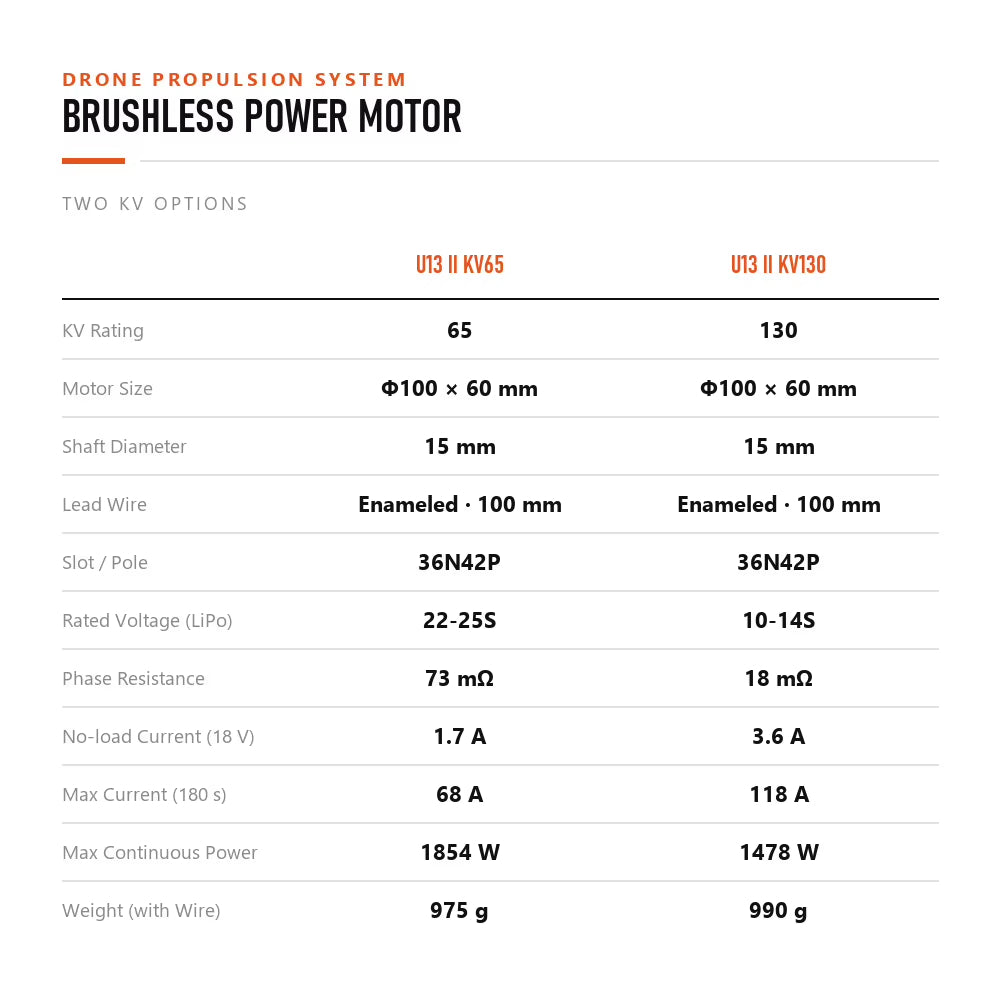

| Parameter |
U13 II KV65 |
U13 II KV130 |
| KV Rating |
65 |
130 |
| Motor Size |
Φ100 × 60 mm |
Φ100 × 60 mm |
| Shaft Diameter |
15 mm |
15 mm |
| Lead Wire |
Enameled · 100 mm |
Enameled · 100 mm |

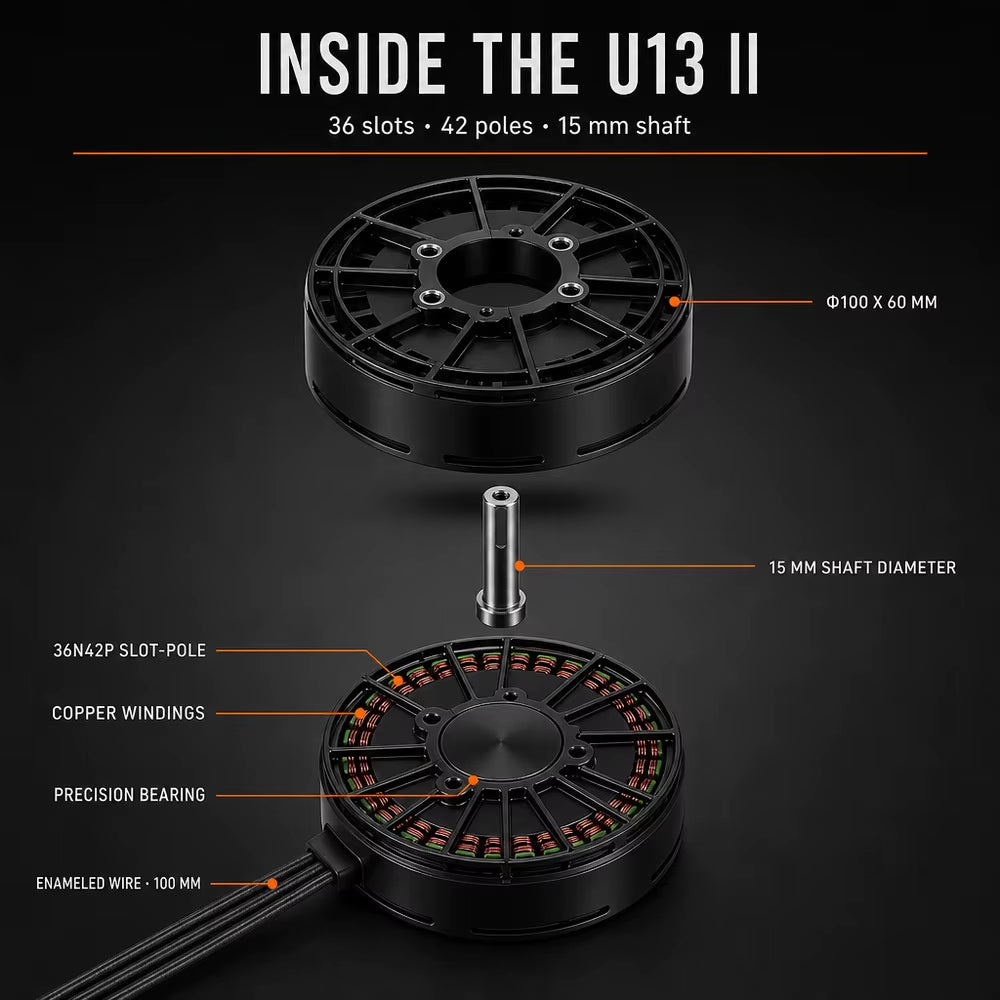

| Slot / Pole |
36N42P |
36N42P |
| Rated Voltage (LiPo) |
22-25S |
10-14S |
| Phase Resistance |
73 mΩ |
18 mΩ |
| No-load Current (18 V) |
1.7 A |
3.6 A |
| Max Current (180 s) |
68 A |
118 A |

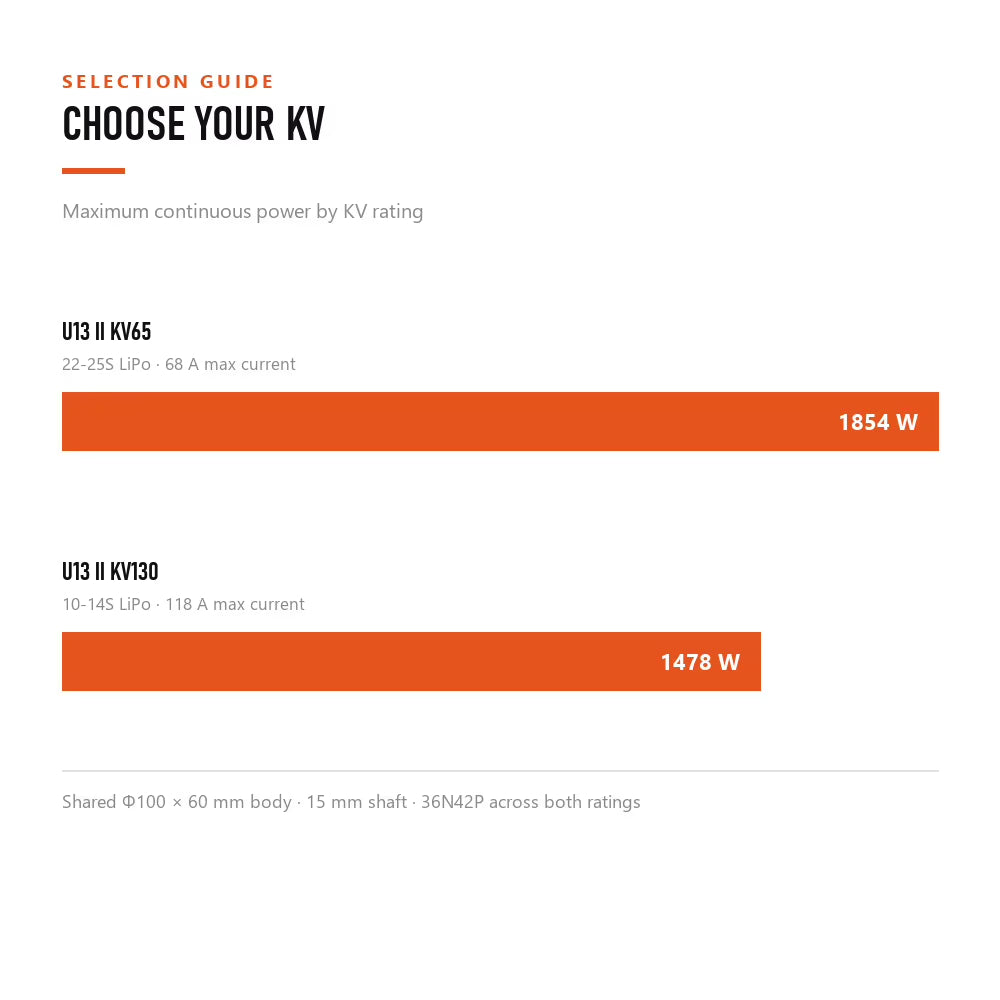

| Max Continuous Power |
1854 W |
1478 W |
| Weight (with Wire) |
975 g |
990 g |
| Windings |
Copper windings |
Copper windings |
| Bearing |
Precision bearing |
Precision bearing |
