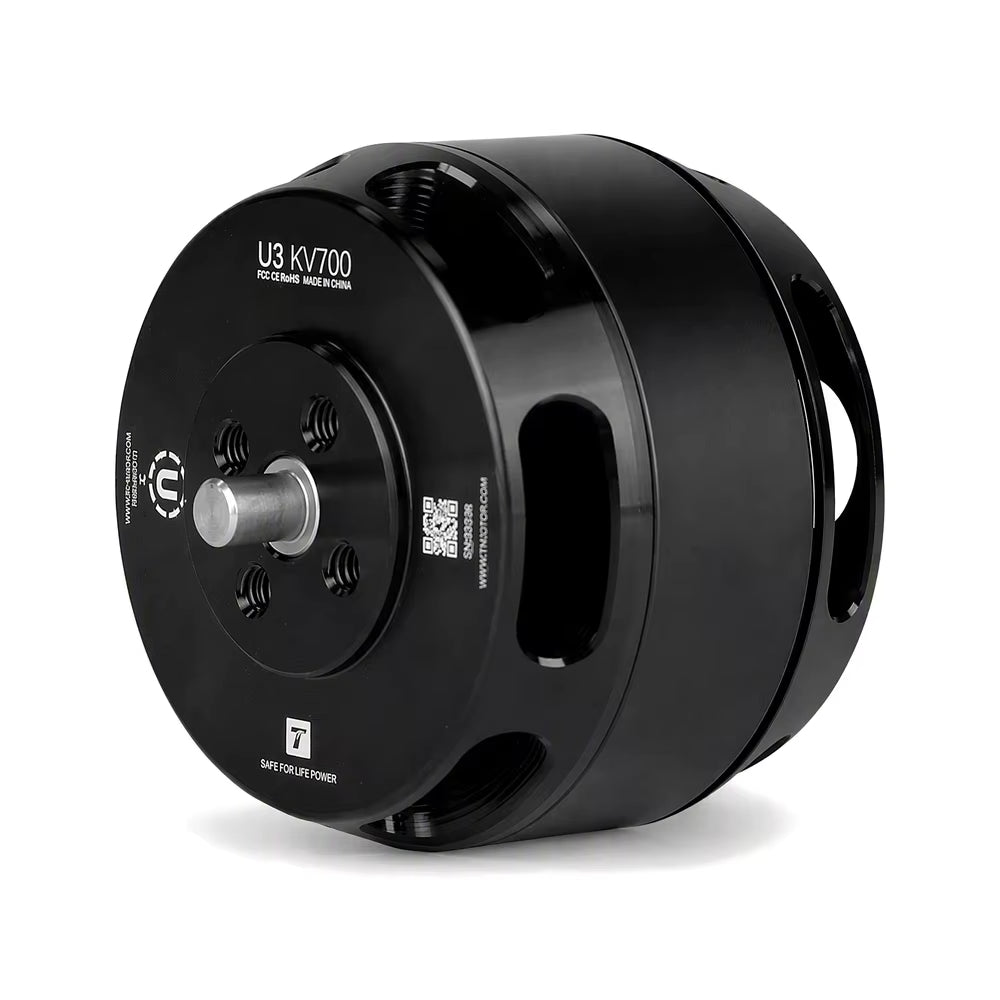

U3 KV700 12N14P external rotating brushless motor
With 4mm shaft, 80W drone motor, suitable for 3-4S multi-rotor drone
The U3 multi-rotor brushless DC motor is specially designed for 3-8 kg high-thrust UAVs and is widely used in aerial photography, distribution services, agricultural plant protection and other fields. Its unique side hole design accelerates airflow and increases motor heat dissipation efficiency by 2.5 times. It uses imported oxygen-free copper wire for precision winding, with a temperature resistance of up to 180°C, excellent short-circuit tolerance, and is matched with high-quality 0.2 mm imported silicon steel sheets. This ensures high tank occupancy, reduces motor heating and eddy current losses, and increases efficiency to the last every cent. The motor is equipped with high-quality imported large bearings for smoother operation, lower noise, and a rated load MTBF (Mean Time Between Failures) of up to 1,600 working hours.
• Maximum thrust: 1.8 kg
• Suitable for 3–8kg multi-rotor drones
Mean time between failures (MTBF) at full load: up to 1600 hours
• Recommended voltage: 4S; Recommended ESC: ALPHA 40A 6S, AIR 40A 6S; Recommended propeller: P12*4 carbon fiber propeller
• Recommended take-off weight: 4 kg for quadcopter, 6 kg for hexacopter, 8 kg for octocopter

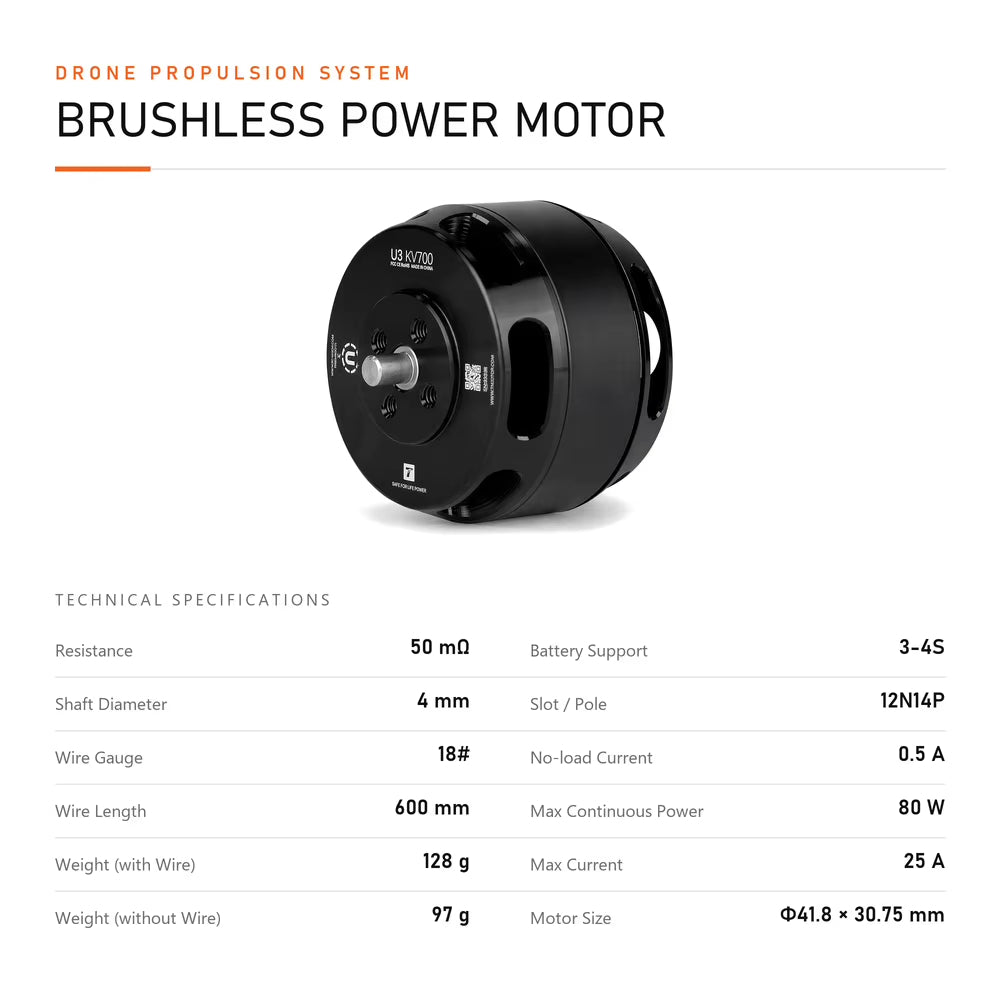

| Parameter |
Specification |
| Resistance |
50 mΩ |
| Shaft Diameter |
4 mm |
| Wire Gauge |
18# |
| Wire Length |
600 mm |

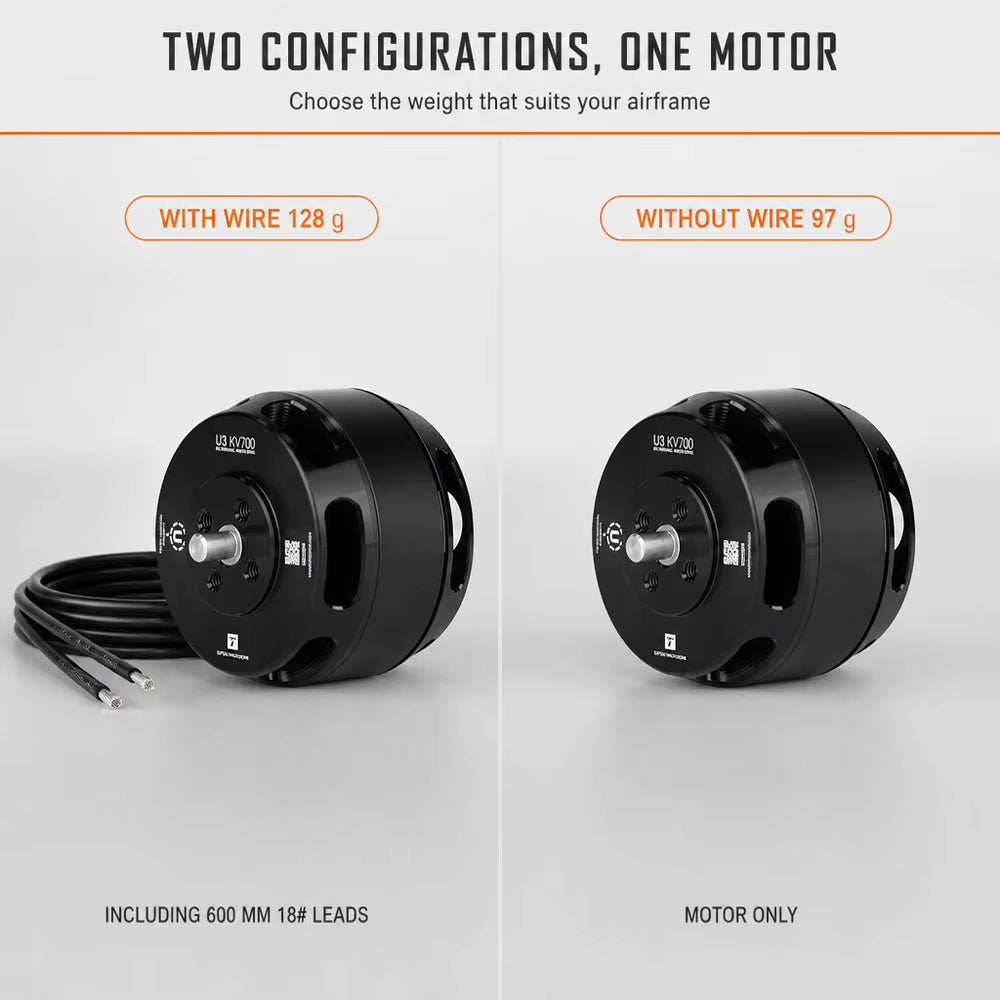

| Weight (with Wire) |
128 g |
| Weight (without Wire) |
97 g |
| Battery Support |
3-4S |
| Slot / Pole |
12N14P |
| No-load Current |
0.5 A |
| Max Continuous Power |
80 W |
| Max Current |
25 A |
| Motor Size |
Φ41.8 × 30.75 mm |
Scene graph

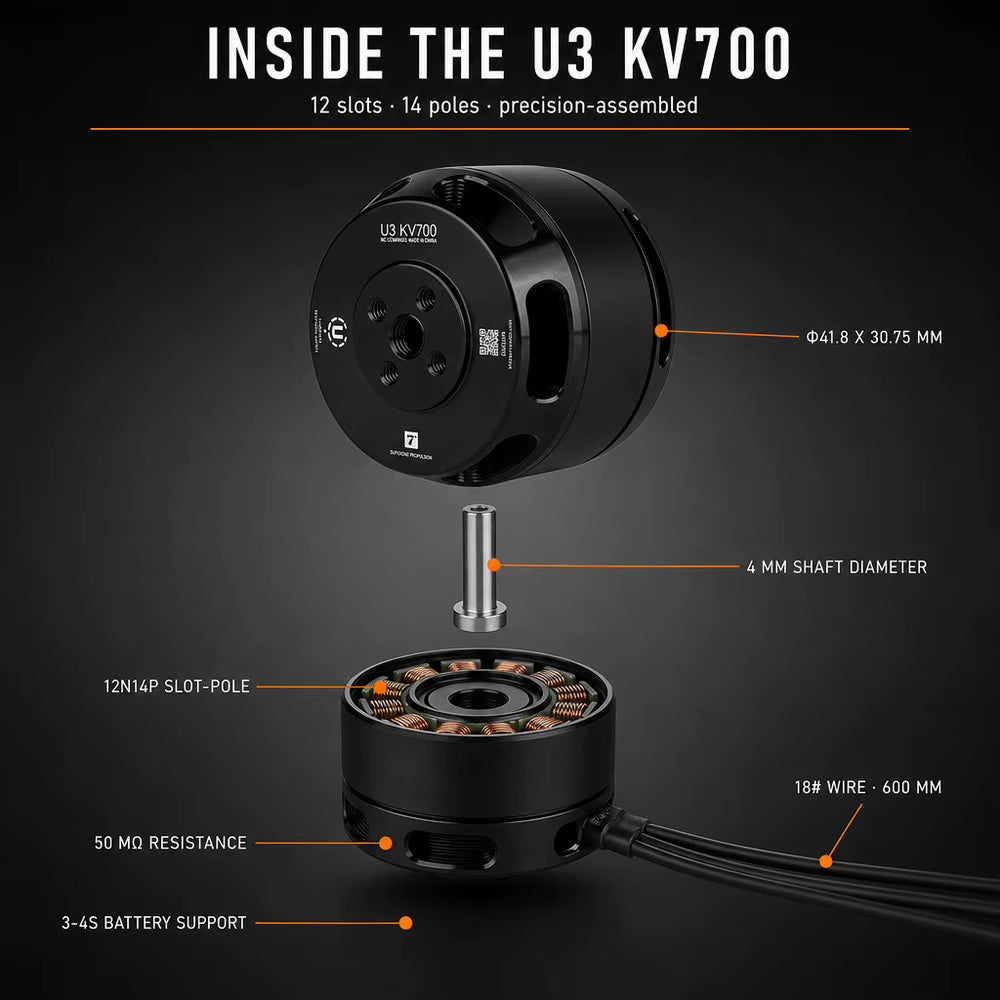

Detailed drawing
