4.64KG thrust, with 6mm shaft, 500W drone motor, suitable for 3-8S heavy drone
Single package size: 50X40X30 cm
Gross weight of a single product: 3.0 kg
1. Optimized efficiency: This T-MOTOR AT8020 55CC vertical take-off and landing drone/fixed-wing aircraft long-axis motor has excellent performance and an efficiency of up to 180KV/210KV. It achieves efficient power transmission and heat dissipation, making it more responsive and reliable under various flight conditions.
2. Load-bearing capacity: This motor has a sturdy design and a load-bearing capacity of up to 40 kilograms, making it ideal for heavy-duty applications such as high-altitude photography or surveying and mapping, ensuring stability and reliability during long-term flights.
3. Compatibility: Specifically designed for the T-MOTOR AT8020 55CC vertical takeoff and landing drone (VTOL) fixed-wing aircraft, the motor is seamlessly integrated with the system, providing optimal performance and perfectly compatible with other T-MOTOR components.
4. Customized mold: The motor adopts a private mold, which ensures the precision and quality of the structure and provides consistent and reliable performance in various environments and conditions.
5. Durable material: This motor is made of aluminum material, which is durable and lightweight, making it ideal for demanding flight applications while also reducing the overall weight of the drone. Aluminum also ensures optimal heat dissipation, extending the life of the motor and improving its performance over time.

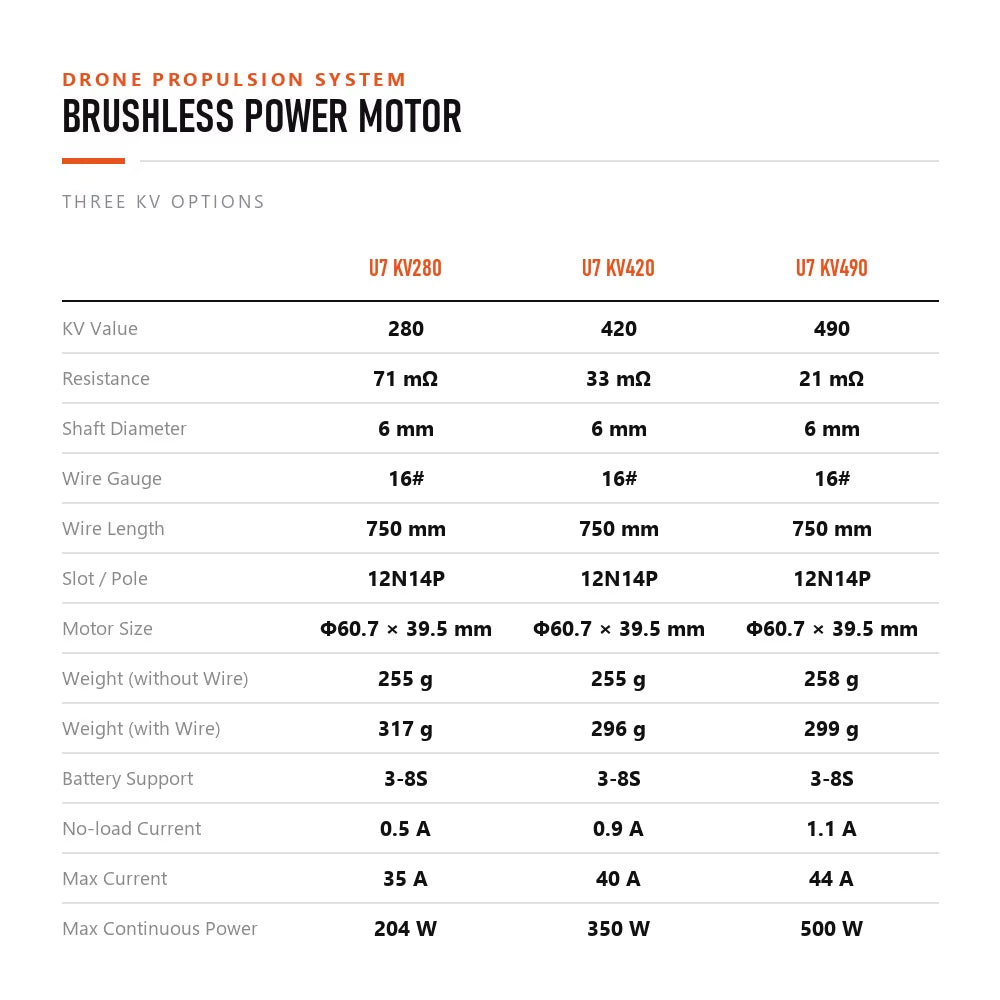

| Parameter |
U7 KV280 |
| KV Value |
280 |
| Resistance |
71 mΩ |
| Shaft Diameter |
6 mm |
| Wire Gauge |
16# |
| Wire Length |
750 mm |
| Slot / Pole |
12N14P |
| Motor Size |
Φ60.7 × 39.5 mm |
| Weight (without Wire) |
255 g |
| Weight (with Wire) |
317 g |
| Battery Support |
3-8S |
| No-load Current |
0.5 A |
| Max Current |
35 A |

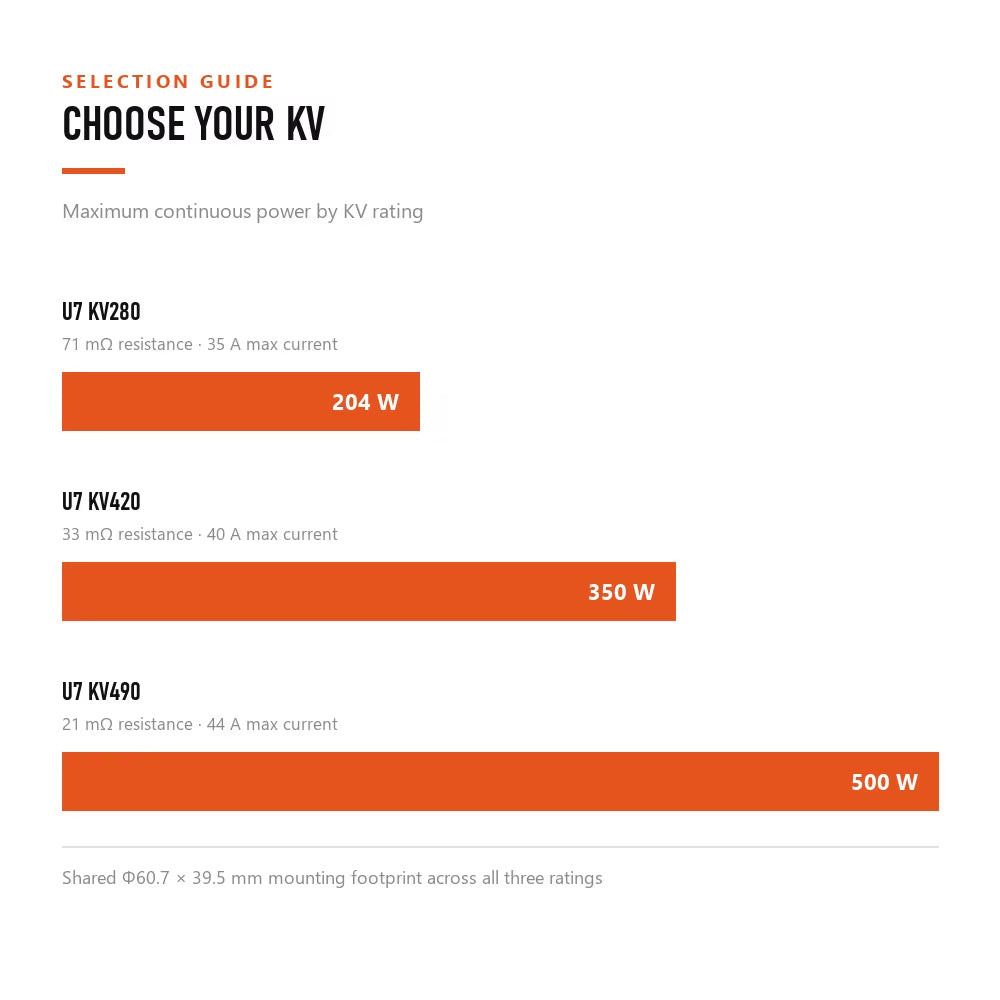

| Max Continuous Power |
204 W |

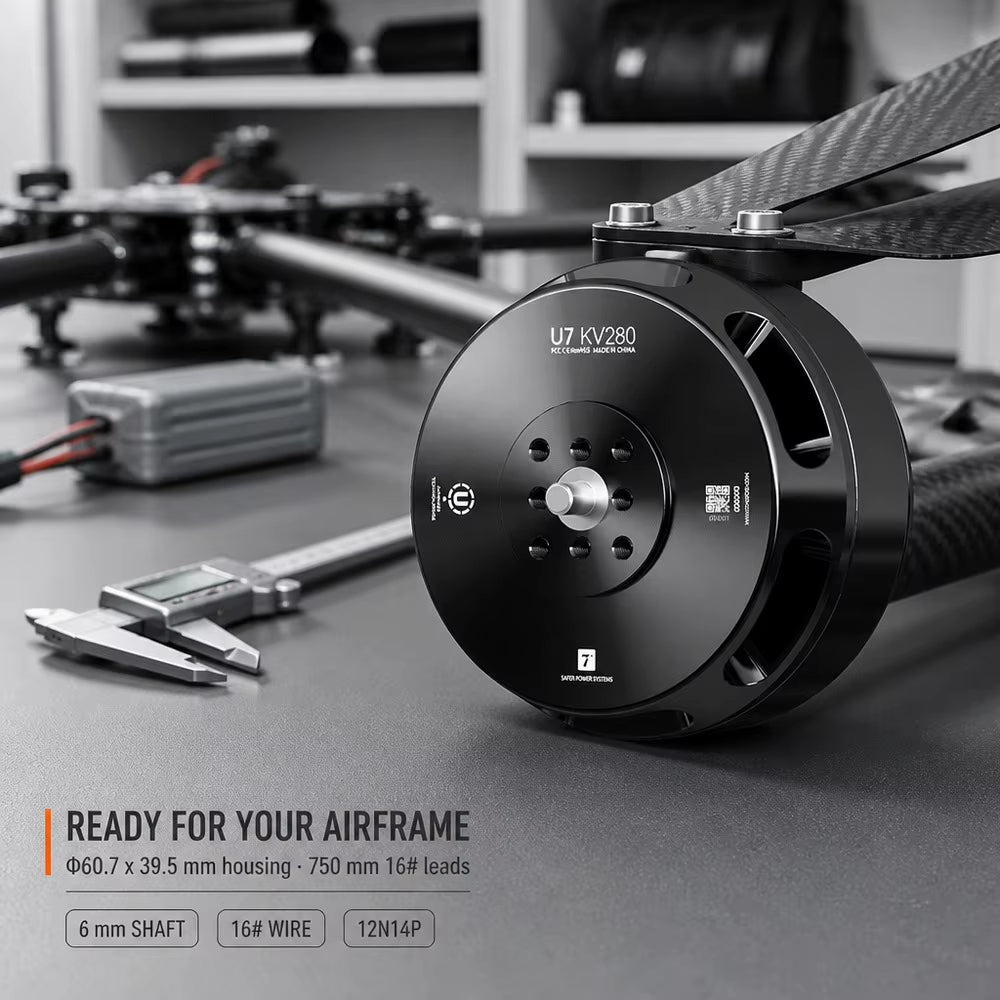

Scene graph

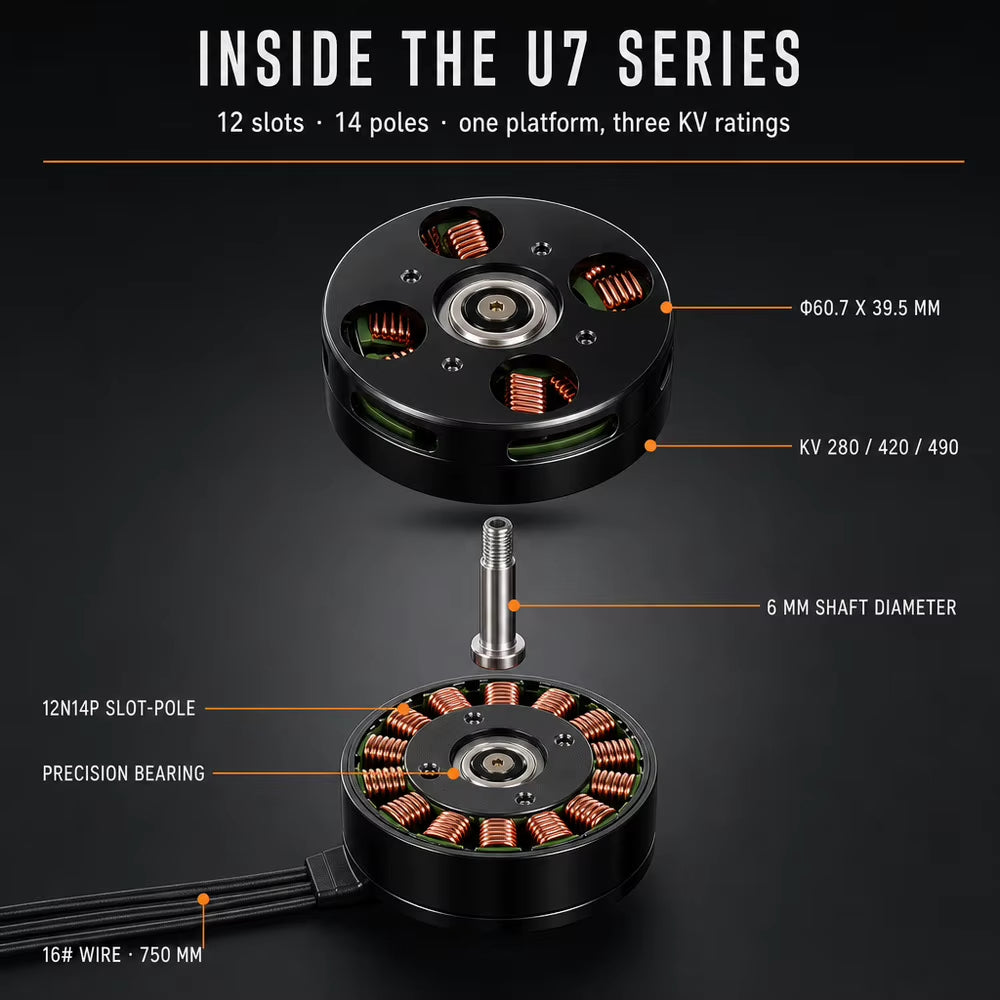

Detailed drawing
